DESCRIPTION

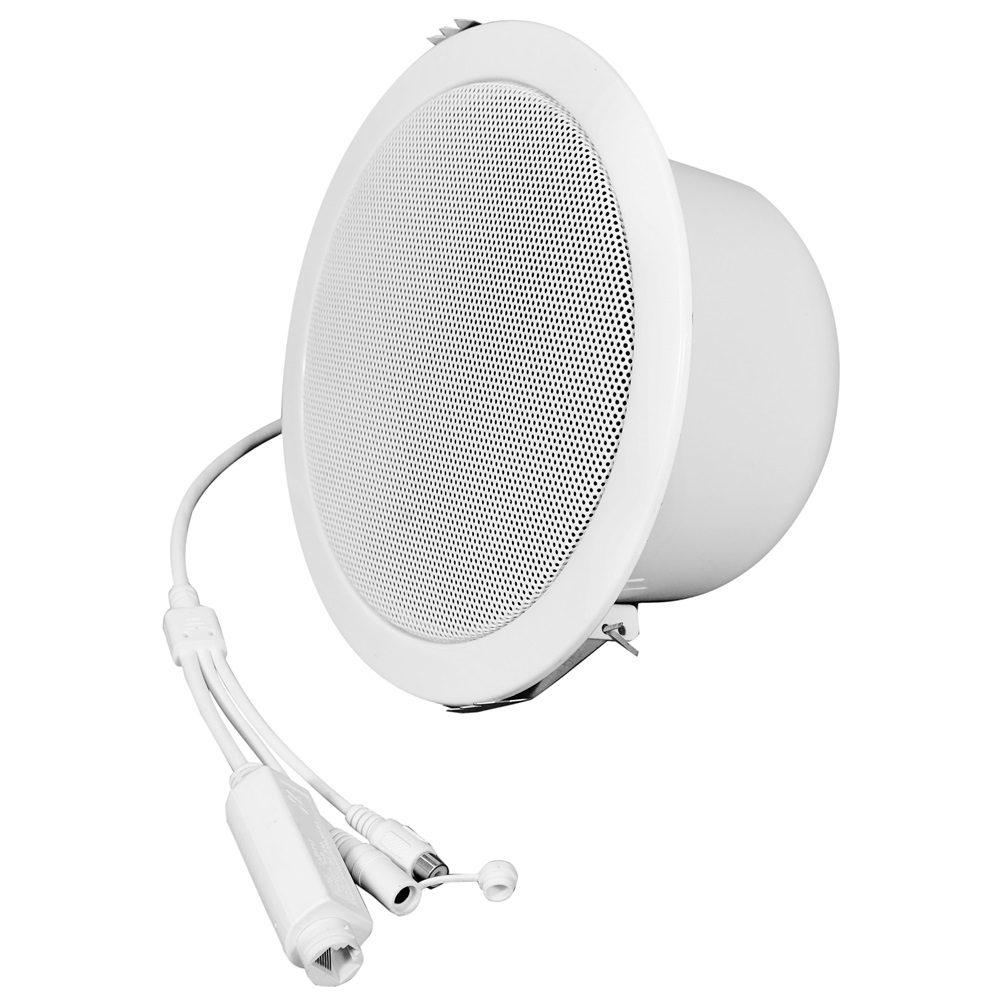

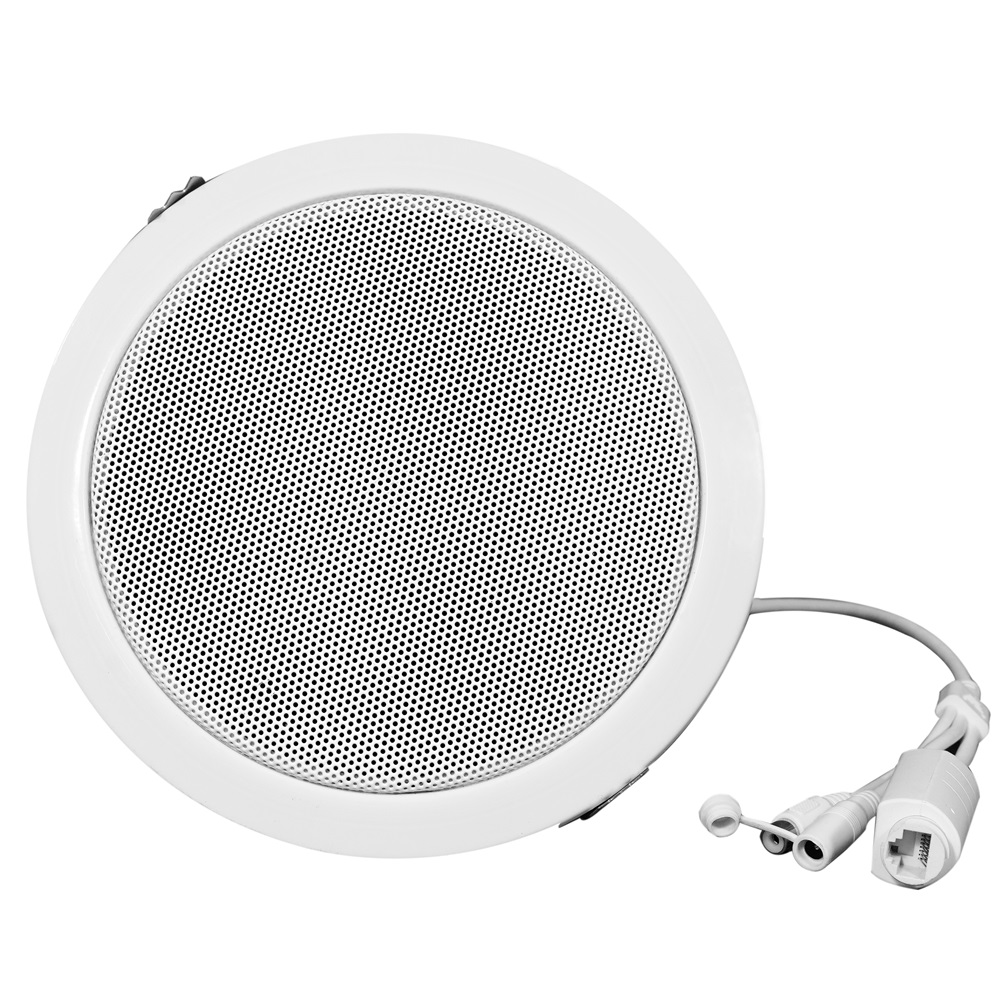

Our IP (SIP) PA Ceiling Speaker is a high-performance speaker which can be used for SIP paging, notification/tone broadcasting and streamed high definition music playback. The high efficient, full-range drive units will provide you with a uniquely advanced listening experience. And it’s designed for the applications where voice coverage is of primary concern.
FEATURES
- Dual-speaker driver design - low frequency bass driver unit & high-frequency tweeter driver unit. Provides premium sound quality, enhances the audience experience.
- Siptok IP Audio Centre auto provisioning support, large-scale installations (local or remote) will be extremely easy and time-saving.
- Built-in SIP support, can be integrated with Siptok IP Audio Centre or 3rd party SIP server, SIP paging using various codecs that provide crystal clear HD voice.
- Music playback through Siptok IP Audio Centre using streamed media. HD MP3 audio files supported for superior quality of background music.
- Standard PoE (IEEE 802.3at) support, simple and easy installation with a single network cable. External power supply can be used if required.
- Built-in amplifier with local or server controlled volume output level, Siptok guarantees full and consistent coverage and also the audio comfort and the flab.
SPECIFICATIONS
| Audio | |
|---|---|
| Codec | OPUS 48 kHz, MP3 44.1 kHz, G.722 ADPCM 16 kHz, G.711 PCMU 8kHz, G.711 PCMA 8 kHz |
| Speaker | |
| Impedance | 8Ω |
| Freq. Response/Band Width | 65-20,000Hz (±3 dB) |
| Amplifier | Built-in Class D Amplifier |
| SPL at 1kHz | 84dB/1W/1m l 95dB/8W/1m |
| THD | less than 0.5% at 1KHz |
| Signal to Noise Ratio | 76dB |
| Network | |
| Security | Password protection, IP address filtering, Digest authentication, User access log, firewall |
| Network Protocol | SIP, ONVIF, HTTP, HTTPS, IPv4, DHCP, RTSP, RTP, RTCP, TCP/IP, UDP, ARP, SNMP, TFTP, NFS, NTP, FTP, ICMP, SSH, SSL, DNS, SNTP |
| Network Interface | 10/100 Base-TX, RJ45 |
| VoIP | Support for SIP protocol for integration with VoIP systems, integrated with SIP/PBX. 2 SIP Accounts, SIP Direct IP Call, RTP Multicast, ONVIF |
| General | |
| Operating Temperature | -10º to +60º C |
| Operating Humidity | 5% to 85% |
| Material | Metal Body |
| Rated Power | 8W |
| Power Supply | PoE/12V-2A |
| Installation | In the Ceiling using Speaker's Clamp |
| Dimensions | D200 (H116) mm |
| Net Weight | 700 gm |
| Languages | English |
| Standard Warranty | 1 year |
| Make |  |
| Approvals & Compliances | ISO 9001:2015, ISO 27001:2022, CE, RoHS, FCC |
| Package Includes | IP PA Ceiling Speaker 8W, Bracket, User Manual, Adapter (on request) |
SCHEMATIC DIAGRAM
